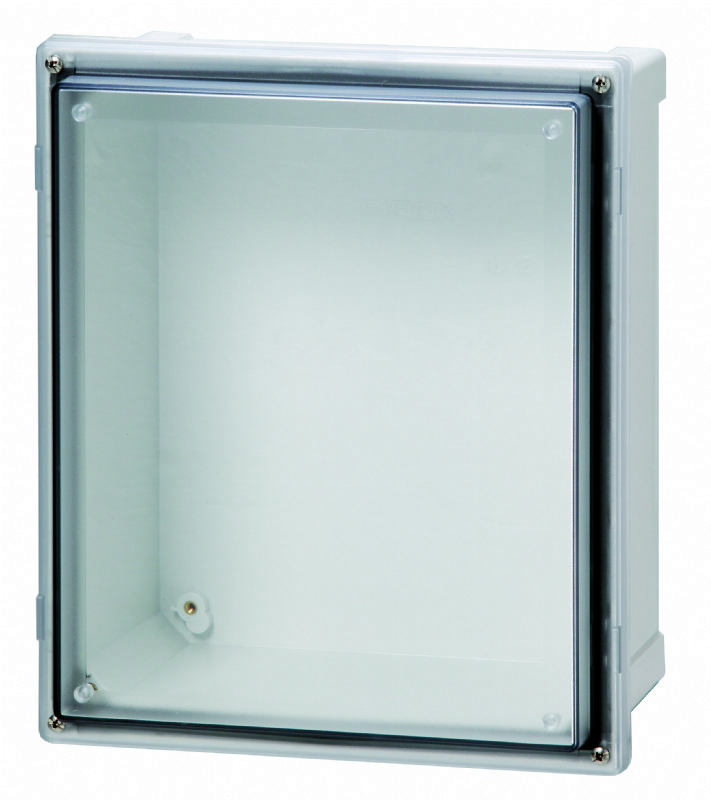

AR14127SCT

Part #: 8561015

Dimensions: 14 x 12 x 7

PC: UL Type NEMA 4, 4X,12, 12K and 13: IP66; IP67;; IK09;

Including: Screw cover. Base with 10-32 brass inserts, cover with formed in place PUR gasket and 4 stainless cover screws. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

Request Information

Technical Data
CAD Files
Certificates & Declarations
Catalogs
Accessories
FAQs & Support

Technical Data

Product
Product nr:	8561015
Description:	14 x 12 x 7 Inch PC Enclosure, Transparent screw cover
Remarks:	PC Enclosure, Transparent screw cover
Package:	1
Unit:	Piece
ETIM:	EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions

Height (inch): 14

Width (inch): 12

Depth (inch): 7

Height (mm): 355.6

Width (mm): 304.8

Depth (mm): 177.8
Materials

Material: Polycarbonate

Base color: RAL 7035 -light grey

Cover color: Transparent

Gasket material: Polyurethane
Temperatures

Temperature °F (short term): -40 … 250

Temperature °F (continuous): -40 … 175

Temperature °C (short term): -40 … 140

Temperature °C (continuous): -40 … 80

Dimensions
Height (inch):	14
Width (inch):	12
Depth (inch):	7
Height (mm):	355.6
Width (mm):	304.8
Depth (mm):	177.8

Materials
Material:	Polycarbonate
Base color:	RAL 7035 -light grey
Cover color:	Transparent
Gasket material:	Polyurethane

Temperatures
Temperature °F (short term):	-40 … 250
Temperature °F (continuous):	-40 … 175
Temperature °C (short term):	-40 … 140
Temperature °C (continuous):	-40 … 80

Ratings
Ingress Protection (EN 60529):	IP66; IP67;
Impact Resistance (EN 62262):	IK09;
Electrical insulation:	Fully insulated
Halogen free (DIN/VDE 0472, Part 815):	Yes
UV resistance:	UL 508
Flammability Rating:	UL94-5VA (f1)/ Cover: UL94-V0 (f1)
Glow Wire Test (IEC 60695):	960 °C
NEMA Class:	NEMA 4, 4X,12, 12K and 13
