ARCA 203015 No-MP

Part #: 8120020N

Dimensions: 7.87 x 11.81 x 5.9

PC: UL Type NEMA 1, 4, 4X, 12 and 13:;IK10

Including: Cabinet enclosure with PUR gasket. 3mm double bit lock(s) with key, screws for mounting, and door guide.

Request Information
ARCA 203015 No-MP

Technical Data

  • Product
    Product nr: 8120020N
    Description: Cabinet Style, PC
    Remarks: Grey cover, 1-point locking, hinges on the short side
    Package: 1
    Unit: Piece
    EAN: 6418074089403
    ETIM: EC000261 Enclosure/Switchgear cabinet (empty)
  • Dimensions
    Height (inch): 7.87
    Width (inch): 11.81
    Depth (inch): 6.22
    Height (mm): 200
    Width (mm): 300
    Depth (mm): 150
  • Materials
    Material: Polycarbonate, PC
    Base color: RAL 7035 -light grey
    Cover color: RAL 7035 -light grey
    Gasket material: Polyurethane (PUR)
  • Temperatures
    Temperature °F (short term): : -40 … 250
    Temperature °F (continuous):  -40 … 175
    Temperature °C (short term): -40 … 140
    Temperature °C (continuous): -40 … 80
  • Ratings
    Impact Resistance (EN 62262): IK10
    Electrical insulation: Totally Insulated
    Halogen free (DIN/VDE 0472, Part 815): Yes
    UV resistance: UL 508
    Flammability Rating: UL94-5VA (f1)
    Glow Wire Test (IEC 60695): 960 °C
    NEMA Class: NEMA 1, 4, 4X, 12 and 13

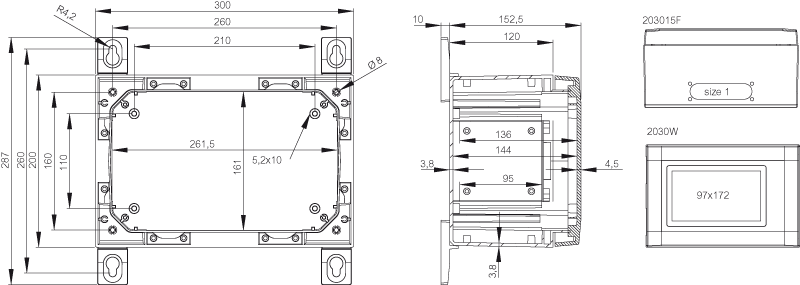

  • Technical Drawings
    ARCA2030.gif Download drawing

CAD Files:

Please log in to your account to view CAD files. Don't have an account? Create a free account
