PC 17/16-LFC3

Technical Data

• Product
  Description:	Opaque screw cover
  Package:	4
  EAN:	#N/A
  SSTL number:	3421680
  Electric No. Denmark:	8212016635
  Electric No. Sweden:	7520104

• Dimensions
  Height (inch):	6.5
  Width (inch):	6.3
  Depth (inch):	3.5
  Height (mm):	166
  Width (mm):	160
  Depth (mm):	89

• Materials
  Material:	Polycarbonate
  Base color:	RAL 7035 -light grey
  Cover color:	RAL 7035 -light grey
  Gasket material:	Polyurethane

• Temperatures
  Temperature °F (short term):	-40 … 250
  Temperature °F (continuous):	-40 … 175
  Temperature °C (short term):	-40 … 140
  Temperature °C (continuous):	-40 … 80

• Ratings
  Ingress Protection (EN 60529):	IP66; IP67;
  Impact Resistance (EN 62262):	IK07
  Electrical insulation:	Totally insulated
  Halogen free (DIN/VDE 0472, Part 815):	No
  UV resistance:	UL 508
  Flammability Rating:	UL94-5VA (f1)/ Cover: UL94-V0 (f1)
  Glow Wire Test (IEC 60695):	960 °C
  NEMA Class:	Type 1, 4, 4X, 12, and 13

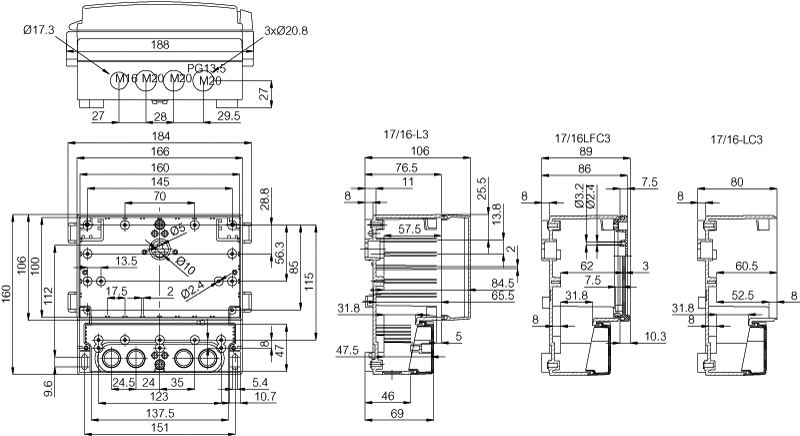

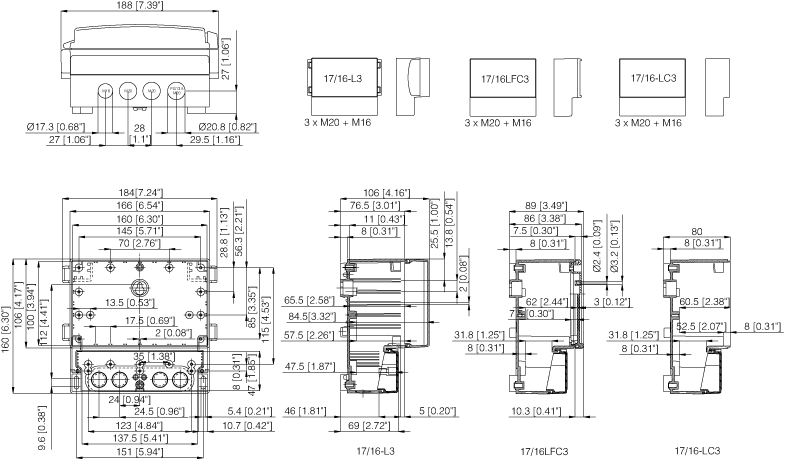

• Technical Drawings
  	Download drawing
  	Download drawing
