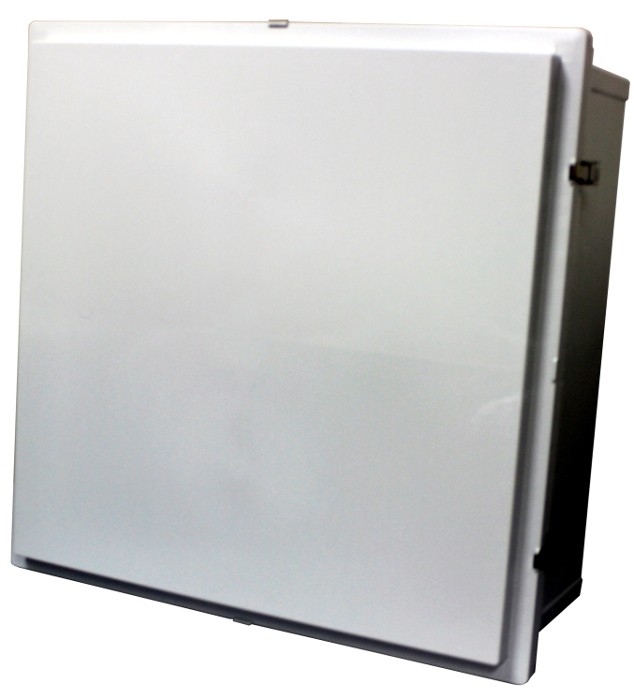

AR 303010CHSSL
Part #: 8561394
Dimensions: 30x30x10
Ratings: UL Type NEMA 4, 4X, 6, 6P, 12, 12K and 13: IP66; IP67;; IK09;
Including: Hinged, latched cover with formed in place PUR gasket, stainless hinge pin. Lockable stainless-steel latches. Metal enclosure mounting foot kit.
Technical Data
-
Product Description: Hinged opaque enclosure with lockable stainless-steel latch Remarks: PC Enclosure, Hinged opaque screw cover w/S.S. Lockable latch Package: 1 Unit: Piece -
Dimensions Height (inch): 30 Width (inch): 30 Depth (inch): 10 Height (mm): 762 Width (mm): 762 Depth (mm): 254 -
Materials Material: Polycarbonate Base color: RAL 7035 -light grey Cover color: RAL 7035 -light grey Gasket material: Polyurethane -
Temperatures Temperature °F (continuous): -40 … 175 Temperature °C (continuous): -40 … 80 -
Ratings UL/cUL Type: UL/cUL 4, 4X, 6, 6P, 12, 12K and 13 UL 1741 Compliant Ingress Protection (EN 60529): IP66; IP67; Impact Resistance (EN 62262): IK09; Electrical insulation: Fully insulated Halogen free (DIN/VDE 0472, Part 815): Yes UV resistance: UL 508 Flammability Rating: UL94-5VA (f1) -
Technical Drawings
Download drawing
CAD Files:
Please log in to your account to view CAD files. Don't have an account? Create a free account
Catalogs:
www.fiboxusa.com
(888) 342-6987
Product #: 8561394
Order Symbol: AR 303010CHSSL
Description: Hinged opaque enclosure with lockable stainless-steel latch
Remarks: PC Enclosure, Hinged opaque screw cover w/S.S. Lockable latch
| Dimensions | Height | Width | Depth |
|---|---|---|---|
| Inch | 30 | 30 | 10 |
| mm | 762 | 762 | 254 |
| Materials | |
|---|---|
| Material: | Polycarbonate |
| Base color: | RAL 7035 -light grey |
| Cover color: | RAL 7035 -light grey |
| Gasket material: | Polyurethane |
| Temperatures | |
|---|---|
| Temperature °F (short term): | -40 … 250 |
| Temperature °F (continuous): | -40 … 175 |
| Temperature °C (short term): | -40 … 140 |
| Temperature °C (continuous): | -40 … 80 |
