AR303010CHSSL
Part #:
Dimensions: 30 x 30 x 10
Ratings: UL Type 4, 4X,12, 12K and 13::IP 66; IP67;IK09;
Including: Hinged cover. Base with 10-32 brass inserts, latched cover with formed in place PUR gasket, stainless hinge pin. Quick release latches. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.
Technical Data
-

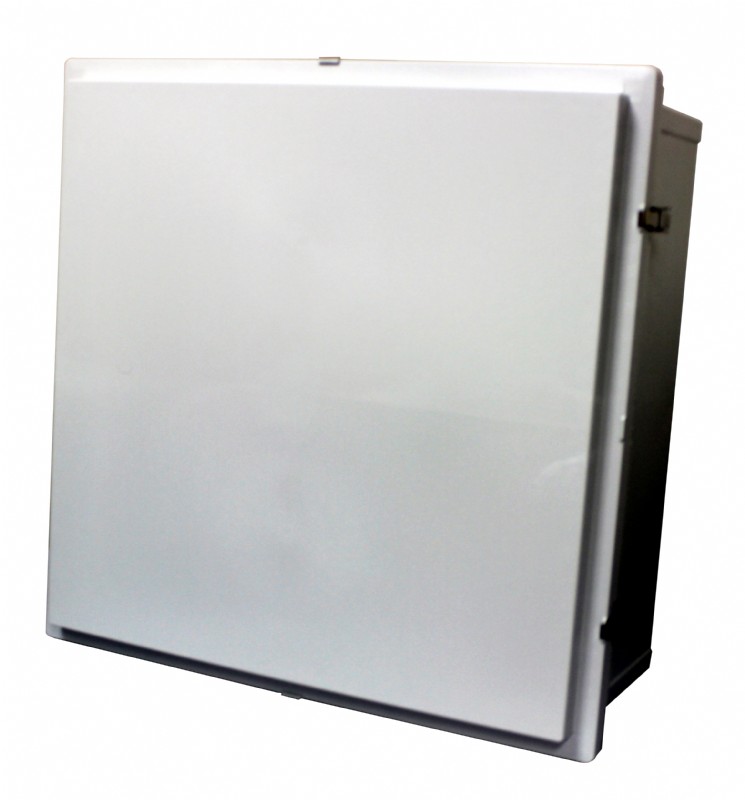

Product Description: Hinged opaque enclosure with lockable stainless-steel latch. Remarks: PC Enclosure, Hinged opaque screw cover w/S.S. Lockable latch Package: 1 Unit: Piece -
Dimensions Height (inch): 30 Width (inch): 30 Depth (inch): 10 Height (mm): 762 Width (mm): 762 Depth (mm): 254 -
Materials Material: Polycarbonate Base color: RAL 7035 -light grey Cover color: RAL 7035 -light grey Gasket material: Polyurethane -
Ratings UL/cUL Type: 4, 4X,12, 12K and 13: UL 1741 Compliant Ingress Protection (EN 60529): IP 66; IP67 Impact Resistance (EN 62262): IK09; Electrical insulation: UL94-5VA (f1) Halogen free (DIN/VDE 0472, Part 815): Yes UV resistance: UL 580 Flammability Rating: UL94-5VA (f1) Glow Wire Test (IEC 60695): 960 °C -

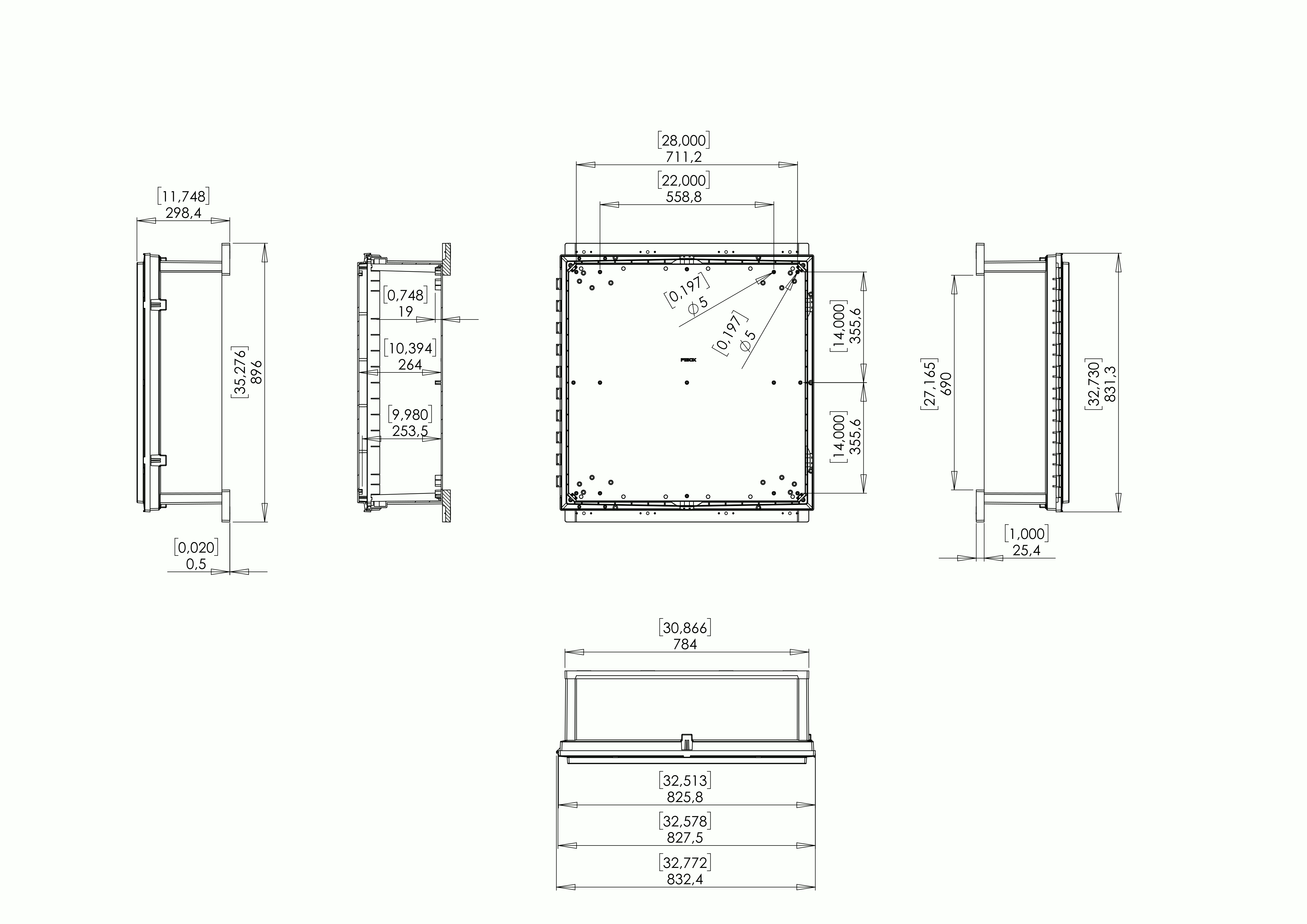

Technical Drawings
Download drawing
Certificates & Declarations:
www.fiboxusa.com
(888) 342-6987
Product #:
Order Symbol: AR303010CHSSL
Description: Hinged opaque enclosure with lockable stainless-steel latch.
Remarks: PC Enclosure, Hinged opaque screw cover w/S.S. Lockable latch
| Dimensions | Height | Width | Depth |
|---|---|---|---|
| Inch | 30 | 30 | 10 |
| mm | 762 | 762 | 254 |
| Materials | |
|---|---|
| Material: | Polycarbonate |
| Base color: | RAL 7035 -light grey |
| Cover color: | RAL 7035 -light grey |
| Gasket material: | Polyurethane |
