AR IPW 1210 K T

Technical Data

• Product

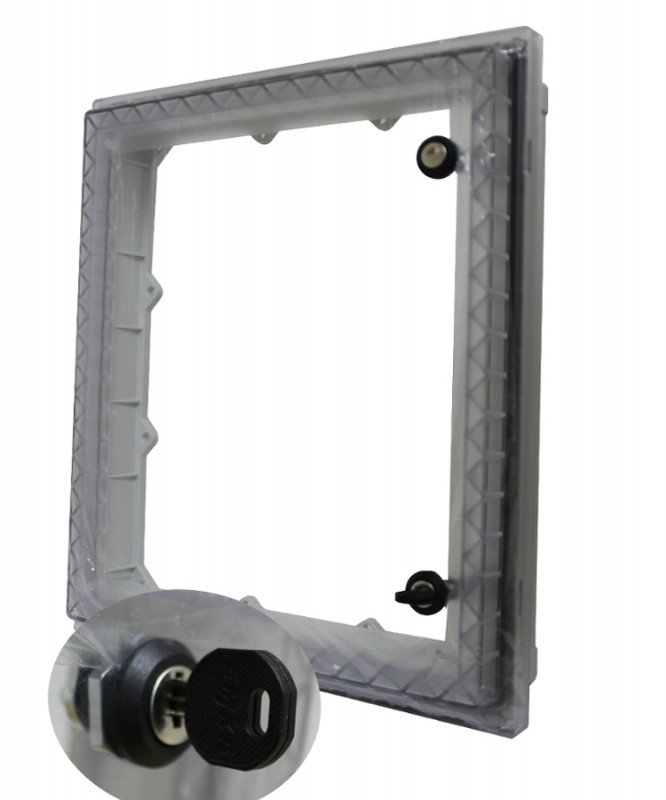

  Description:	Protection Window - HMI Cover
  Remarks:	Transparent, clear cover with key locks.

• Dimensions
  Height (inch):	12
  Width (inch):	10
  Depth (inch):	3.31
  Height (mm):	342
  Width (mm):	295
  Depth (mm):	88

• Materials
  Material:	RAL 7035 -light grey
  Base color:	Transparent
  Cover color:	Polyurethane
  Gasket material:	-40 … 250

• Temperatures
  Temperature °F (short term):	-40 … 175
  Temperature °F (continuous):	-40 … 140
  Temperature °C (short term):	-40 … 80

• Ratings
  Ingress Protection (EN 60529):	IP66; IP67;
  Impact Resistance (EN 62262):	IK09;
  Halogen free (DIN/VDE 0472, Part 815):	Yes
  UV resistance:	UL94-5VA (f1)/ Cover: UL94-V0 (f1)
  Flammability Rating:	UL94-5VA (f1)/ Cover: UL94-V0 (f1)
  Glow Wire Test (IEC 60695):	960 °C
  NEMA Class:	UL 508
