Technical Data
-
Product Description: Window for 36 modules Remarks: Smoked transparent cover Package: 5 Unit: Piece EAN: 6418074035127 SSTL number: 3421149 Electric No. Denmark: 8212015416 Electric No. Sweden: 2540021 -
Dimensions Height (inch): 14.84 Width (inch): 13.03 Depth (inch): 0.04 Height (mm): 377 Width (mm): 331 Depth (mm): 1 -
Materials Material: Polycarbonate Base color: RAL 7035 -light grey Cover color: Smoked -
Temperatures Temperature °F (continuous): °F : -40 … 175 -
Ratings Ingress Protection (EN 60529): IP 65 Impact Resistance (EN 62262): IK08 Halogen free (DIN/VDE 0472, Part 815): No -

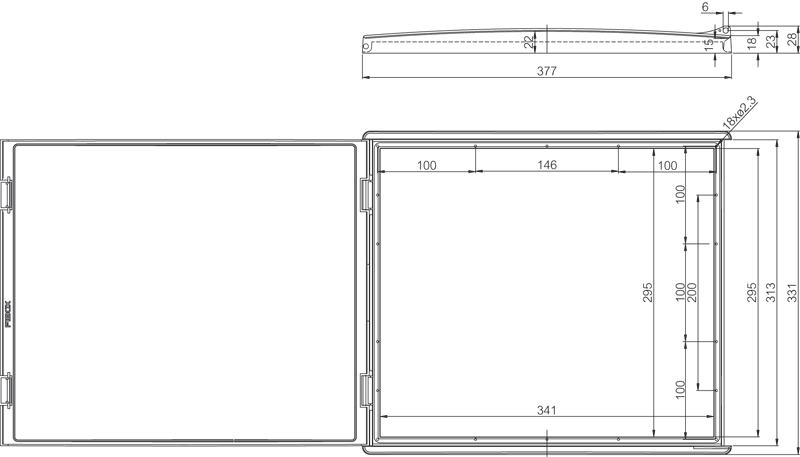

Technical Drawings Download drawing
