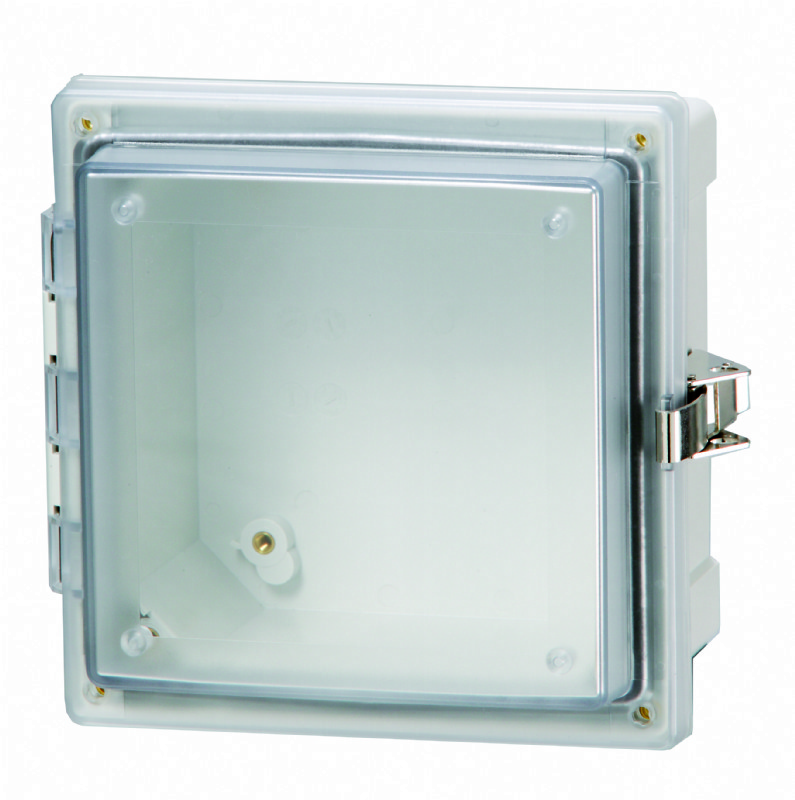

AR664CHSSLT

Part #: 8561036

Dimensions: 6 x 6 x 4

PC: UL Type NEMA 4, 4X, 6, 6P, 12, 12K and 13: IP66; IP67;; IK09;

Including: Hinged cover. Base with 10-32 brass inserts, latched cover with formed in place PUR gasket, stainless hinge pin. Quick release latches. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

Request Information
AR664CHSSLT

Technical Data

  • Product
    Product nr: 8561036
    Description: 6 x 6 x 4 Inch PC Enclosure, Hinged Transparent Screw Cover w/S.S. Lockable latch
    Remarks: PC Enclosure, Hinged Transparent Screw Cover w/S.S. Lockable latch
    Package: 1
    Unit: Piece
    ETIM: EC000261 Enclosure/Switchgear cabinet (empty)
  • Dimensions
    Height (inch): 6
    Width (inch): 6
    Depth (inch): 4
    Height (mm): 152.4
    Width (mm): 152.4
    Depth (mm): 101.6
  • Materials
    Material: Polycarbonate
    Base color: RAL 7035 -light grey
    Cover color: Transparent
    Gasket material: Polyurethane
  • Temperatures
    Temperature °F (continuous): -40 … 175
    Temperature °C (continuous): -40 … 80
  • Ratings
    UL/cUL Type: UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
    UL 1741 Compliant
    Ingress Protection (EN 60529):  IP66; IP67;
    Impact Resistance (EN 62262):  IK09;
    Electrical insulation:  Fully insulated
    Halogen free (DIN/VDE 0472, Part 815): Yes
    UV resistance:  UL 508
    Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1)
    Glow Wire Test (IEC 60695): 960 °C
  • Technical Drawings
    ARCA-6x6_combi.gif Download drawing

CAD Files:

Please log in to your account to view CAD files. Don't have an account? Create a free account

Certificates & Declarations:

View FAQs

Frequently Asked Questions

Get Product Support

Contact Us

Request More Info

Request Information
www.fiboxusa.com(888) 342-6987
AR664CHSSLT
Product #: 8561036
Order Symbol: AR664CHSSLT
Description: 6 x 6 x 4 Inch PC Enclosure, Hinged Transparent Screw Cover w/S.S. Lockable latch
Remarks: PC Enclosure, Hinged Transparent Screw Cover w/S.S. Lockable latch
Dimensions Height Width Depth
Inch 6 6 4
mm 152.4 152.4 101.6
Materials
Material: Polycarbonate
Base color: RAL 7035 -light grey
Cover color: Transparent
Gasket material: Polyurethane
Temperatures
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Temperature °C (short term): -40 … 140
Temperature °C (continuous): -40 … 80
Ratings
Ingress Protection (EN 60529):  IP66; IP67;
Impact Resistance (EN 62262):  IK09;
Electrical insulation:  Fully insulated
Halogen free (DIN/VDE 0472, Part 815): Yes
UV resistance:  UL 508
Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1)
Glow Wire Test (IEC 60695): 960 °C
UL/cUL Type: NEMA 4, 4X, 6, 6P, 12, 12K and 13
