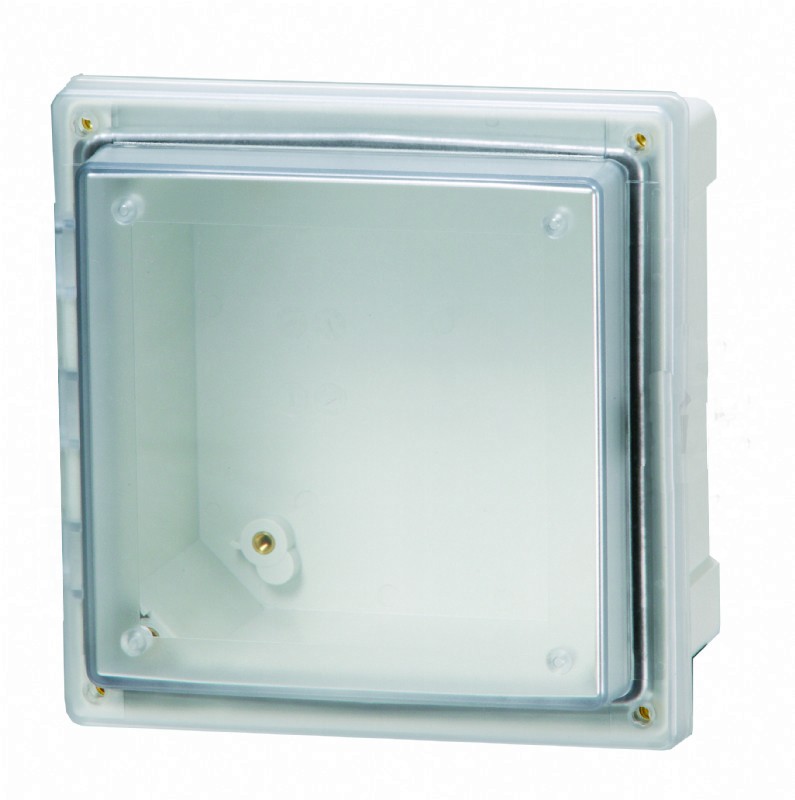

AR664SCT
Part #: 8561011
Dimensions: 6 x 6 x 4
PC: UL Type NEMA 4, 4X, 6, 6P, 12, 12K and 13: IP66; IP67;; IK09;
Including: Screw cover. Base with 10-32 brass inserts, cover with formed in place PUR gasket and 4 stainless cover screws. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.
Technical Data
-
Product Product nr: 8561011 Description: 6 x 6 x 4 Inch PC Enclosure, Transparent screw cover Remarks: PC Enclosure, Transparent screw cover Package: 1 Unit: Piece ETIM: EC000261 Enclosure/Switchgear cabinet (empty) -
Dimensions Height (inch): 6 Width (inch): 6 Depth (inch): 4 Height (mm): 152.4 Width (mm): 152.4 Depth (mm): 101.6 -
Materials Material: Polycarbonate Base color: RAL 7035 -light grey Cover color: Transparent Gasket material: Polyurethane -
Temperatures Temperature °F (continuous): -40 … 175 Temperature °C (continuous): -40 … 80 -
Ratings UL/cUL Type: UL/cUL 4, 4X, 6, 6P, 12, 12K and 13 UL 1741 Compliant Ingress Protection (EN 60529): IP66; IP67; Impact Resistance (EN 62262): IK09; Electrical insulation: Fully insulated Halogen free (DIN/VDE 0472, Part 815): Yes UV resistance: UL 508 Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1) Glow Wire Test (IEC 60695): 960 °C -
Technical Drawings Download drawing
CAD Files:
Please log in to your account to view CAD files. Don't have an account? Create a free account
Certificates & Declarations:
www.fiboxusa.com(888) 342-6987
Product #: 8561011
Order Symbol: AR664SCT
Description: 6 x 6 x 4 Inch PC Enclosure, Transparent screw cover
Remarks: PC Enclosure, Transparent screw cover
Dimensions | Height | Width | Depth |
---|---|---|---|
Inch | 6 | 6 | 4 |
mm | 152.4 | 152.4 | 101.6 |
Materials | |
---|---|
Material: | Polycarbonate |
Base color: | RAL 7035 -light grey |
Cover color: | Transparent |
Gasket material: | Polyurethane |
Temperatures | |
---|---|
Temperature °F (short term): | -40 … 250 |
Temperature °F (continuous): | -40 … 175 |
Temperature °C (short term): | -40 … 140 |
Temperature °C (continuous): | -40 … 80 |
