ARCA 403015 No-MP
Part #: 8120006N
Dimensions: 15.75 x 11.81 x 5.9
PC: UL Type NEMA 1, 4, 4X, 12 and 13:IP66;IK10
Including: Cabinet enclosure with PUR gasket. 3mm double bit lock(s) with key, screws for mounting, and door guide.
Technical Data
-
Product Product nr: 8120006N Description: Cabinet Style, PC Remarks: Grey cover, 2-point locking, hinges on the long side Package: 1 Unit: Piece EAN: 6418074089342 ETIM: EC000261 Enclosure/Switchgear cabinet (empty) -
Dimensions Height (inch): 15.75 Width (inch): 11.81 Depth (inch): 6.22 Height (mm): 400 Width (mm): 300 Depth (mm): 150 -
Materials Material: Polycarbonate, PC Base color: RAL 7035 -light grey Cover color: RAL 7035 -light grey Gasket material: Polyurethane (PUR) -
Temperatures Temperature °F (continuous): -40 … 175 Temperature °C (continuous): -40 … 80 -
Ratings UL/cUL Type: UL/cUL 1, 4, 4X, 12 and 13 UL 1741 Compliant Ingress Protection (EN 60529): IP66 Impact Resistance (EN 62262): IK10 Electrical insulation: Totally Insulated Halogen free (DIN/VDE 0472, Part 815): Yes UV resistance: UL 508 Flammability Rating: UL94-5VA (f1) Glow Wire Test (IEC 60695): 960 °C -

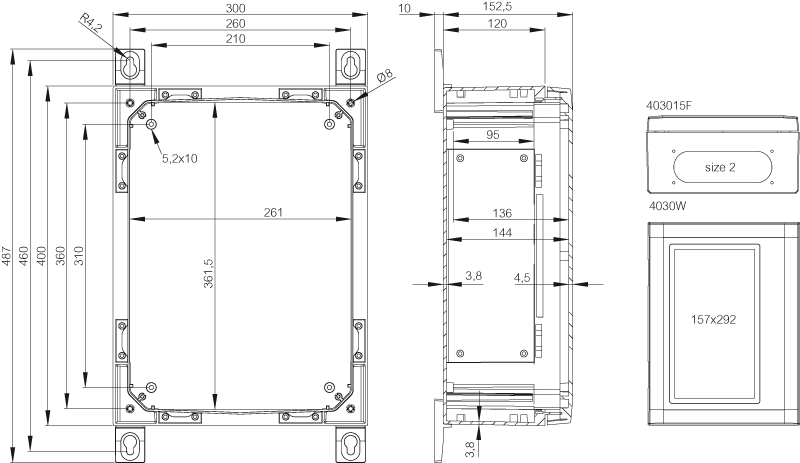

Technical Drawings Download drawing
CAD Files:
Please log in to your account to view CAD files. Don't have an account? Create a free account
Certificates & Declarations:
Catalogs:
www.fiboxusa.com(888) 342-6987
Product #: 8120006N
Order Symbol: ARCA 403015 No-MP
Description: Cabinet Style, PC
Remarks: Grey cover, 2-point locking, hinges on the long side
Dimensions | Height | Width | Depth |
---|---|---|---|
Inch | 15.75 | 11.81 | 6.22 |
mm | 400 | 300 | 150 |
Materials | |
---|---|
Material: | Polycarbonate, PC |
Base color: | RAL 7035 -light grey |
Cover color: | RAL 7035 -light grey |
Gasket material: | Polyurethane (PUR) |
Temperatures | |
---|---|
Temperature °F (short term): | : -40 … 250 |
Temperature °F (continuous): | -40 … 175 |
Temperature °C (short term): | -40 … 140 |
Temperature °C (continuous): | -40 … 80 |
