PC 21/18-3

Part #: 7525154

Dimensions: 9.3 x 7.3 x 4.7 inches

PC: UL Type Type 1, 4, 4X, 12, and 13: IP66; IP67;; IK07

Including:

Request Information
PC 21/18-3

Technical Data

  • Product
    Description: Smoked transparent hinged cover
    Package: 4
    EAN: #N/A
    Electric No. Denmark: 8212016664
    Electric No. Sweden: 2537306
  • Dimensions
    Height (inch): 9.3
    Width (inch): 7.3
    Depth (inch): 4.7
    Height (mm): 235
    Width (mm): 185
    Depth (mm): 119
  • Materials
    Material: Polycarbonate
    Base color: RAL 7035 -light grey
    Cover color: Transparent
    Gasket material: Polyurethane
  • Temperatures
    Temperature °F (short term): -40 … 250
    Temperature °F (continuous): -40 … 175
    Temperature °C (short term): -40 … 140
    Temperature °C (continuous): -40 … 80
  • Ratings
    UL/cUL Type: Type 1, 4, 4X, 12, and 13
    Ingress Protection (EN 60529):  IP66; IP67;
    Impact Resistance (EN 62262):  IK07
    Electrical insulation: Totally insulated
    Halogen free (DIN/VDE 0472, Part 815): No
    UV resistance:  UL 508
    Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1)
    Glow Wire Test (IEC 60695): 960 °C
  • Technical Drawings
    CM21_18-3i.gif Download drawing

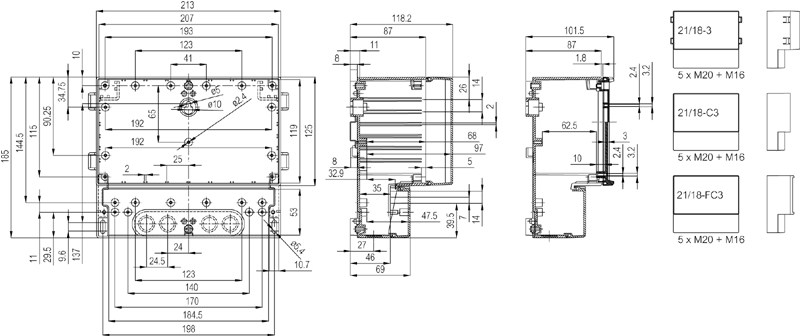

    CM21_18-3.gif Download drawing

CAD Files:

Please log in to your account to view CAD files. Don't have an account? Create a free account

Certificates & Declarations:

View FAQs

Frequently Asked Questions

Get Product Support

Contact Us

Request More Info

Request Information
www.fiboxusa.com(888) 342-6987
PC 21/18-3
Product #: 7525154
Order Symbol: PC 21/18-3
Description: Smoked transparent hinged cover
Dimensions Length Width Height
Inch 4.7 7.3 9.3
mm 119 185 235
Materials
Material: Polycarbonate
Base color: RAL 7035 -light grey
Cover color: Transparent
Gasket material: Polyurethane
Temperatures
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Temperature °C (short term): -40 … 140
Temperature °C (continuous): -40 … 80
Ratings
Ingress Protection (EN 60529):  IP66; IP67;
Impact Resistance (EN 62262):  IK07
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): No
UV resistance:  UL 508
Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1)
Glow Wire Test (IEC 60695): 960 °C
UL/cUL Type: Type 1, 4, 4X, 12, and 13
