PC 21/18-FC3
Part #: 7520281
Dimensions: 8.4 x 7.3 x 4 inches
PC: UL Type Type 1, 4, 4X, 12, and 13: IP66; IP67;; IK07
Including:
Technical Data
-
Product Description: Opaque screw cover Package: 4 EAN: #N/A -
Dimensions Height (inch): 8.4 Width (inch): 7.3 Depth (inch): 4 Height (mm): 213 Width (mm): 185 Depth (mm): 102 -
Materials Material: Polycarbonate Base color: RAL 7035 -light grey Cover color: RAL 7035 -light grey Gasket material: Polyurethane -
Temperatures Temperature °F (short term): -40 … 250 Temperature °F (continuous): -40 … 175 Temperature °C (short term): -40 … 140 Temperature °C (continuous): -40 … 80 -
Ratings UL/cUL Type: Type 1, 4, 4X, 12, and 13 Ingress Protection (EN 60529): IP66; IP67; Impact Resistance (EN 62262): IK07 Electrical insulation: Totally insulated Halogen free (DIN/VDE 0472, Part 815): No UV resistance: UL 508 Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1) Glow Wire Test (IEC 60695): 960 °C -

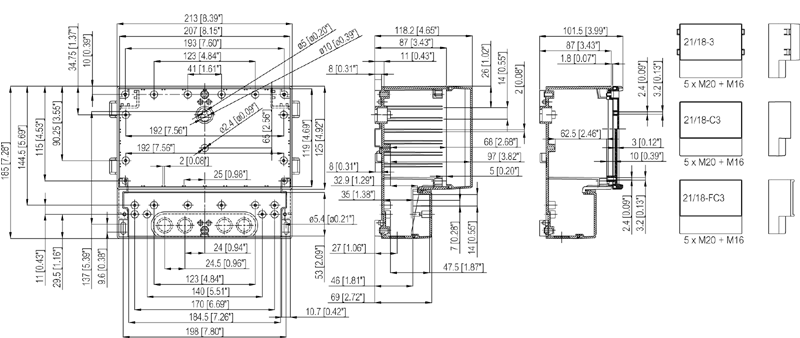

Technical Drawings
Download drawing
CAD Files:
Please log in to your account to view CAD files. Don't have an account? Create a free account
Certificates & Declarations:
www.fiboxusa.com
(888) 342-6987
Product #: 7520281
Order Symbol: PC 21/18-FC3
Description: Opaque screw cover
| Dimensions | Height | Width | Depth |
|---|---|---|---|
| Inch | 8.4 | 7.3 | 4 |
| mm | 213 | 185 | 102 |
| Materials | |
|---|---|
| Material: | Polycarbonate |
| Base color: | RAL 7035 -light grey |
| Cover color: | RAL 7035 -light grey |
| Gasket material: | Polyurethane |
| Temperatures | |
|---|---|
| Temperature °F (short term): | -40 … 250 |
| Temperature °F (continuous): | -40 … 175 |
| Temperature °C (short term): | -40 … 140 |
| Temperature °C (continuous): | -40 … 80 |
