PC 30/25-FC3
Part #: 7520231
Dimensions: 12.4 x 10.2 x 4.3 inches
PC: UL Type Type 1, 4, 4X, 12, and 13: IP66; IP67;; IK07
Including:
Technical Data
-
Product Description: Opaque screw cover Package: 4 EAN: 6418074059383 -
Dimensions Height (inch): 12.4 Width (inch): 10.2 Depth (inch): 4.3 Height (mm): 314 Width (mm): 260 Depth (mm): 110 -
Materials Material: Polycarbonate Base color: RAL 7035 -light grey Cover color: RAL 7035 -light grey Gasket material: Polyurethane -
Temperatures Temperature °F (continuous): -40 … 175 Temperature °C (continuous): -40 … 80 -
Ratings UL/cUL Type: Type 1, 4, 4X, 12, and 13 Ingress Protection (EN 60529): IP66; IP67; Impact Resistance (EN 62262): IK07 Electrical insulation: Totally insulated Halogen free (DIN/VDE 0472, Part 815): No UV resistance: UL 508 Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1) Glow Wire Test (IEC 60695): 960 °C -

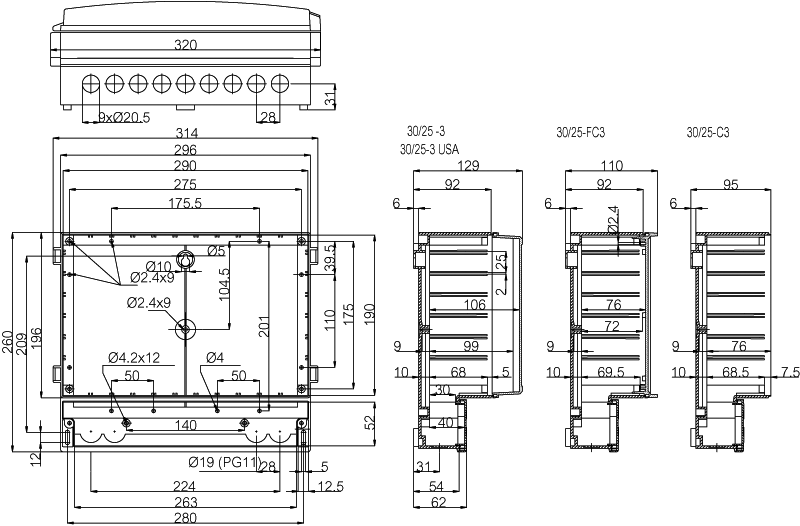

Technical Drawings
Download drawing
Download drawing
CAD Files:
Please log in to your account to view CAD files. Don't have an account? Create a free account
Certificates & Declarations:
www.fiboxusa.com
(888) 342-6987
Product #: 7520231
Order Symbol: PC 30/25-FC3
Description: Opaque screw cover
| Dimensions | Height | Width | Depth |
|---|---|---|---|
| Inch | 12.4 | 10.2 | 4.3 |
| mm | 314 | 260 | 110 |
| Materials | |
|---|---|
| Material: | Polycarbonate |
| Base color: | RAL 7035 -light grey |
| Cover color: | RAL 7035 -light grey |
| Gasket material: | Polyurethane |
| Temperatures | |
|---|---|
| Temperature °F (short term): | -40 … 250 |
| Temperature °F (continuous): | -40 … 175 |
| Temperature °C (short term): | -40 … 140 |
| Temperature °C (continuous): | -40 … 80 |
