TM 1625

Part #: 9512018

Dimensions: 5.94 x 8.43 x 0.04 Inches

PC: UL Type :;

Including:

Request Information
TM 1625

Technical Data

  • Product
    Description: Mounting plate, for enclosures:
    Remarks: 250x160x90-250x160x150
    Package: 4
    Unit: piece
    EAN: 6418074034076
    SSTL number: 8212004029
    Electric No. Denmark: 8212004029
    Electric No. Sweden: 2536165
  • Dimensions
    Height (inch): 5.94
    Width (inch): 8.43
    Depth (inch): 0.04
    Height (mm): 151
    Width (mm): 214
    Depth (mm): 1
  • Materials
    Material: Galvanized Steel
  • Ratings
    Electrical insulation: Not Insulated
    Halogen free (DIN/VDE 0472, Part 815): No

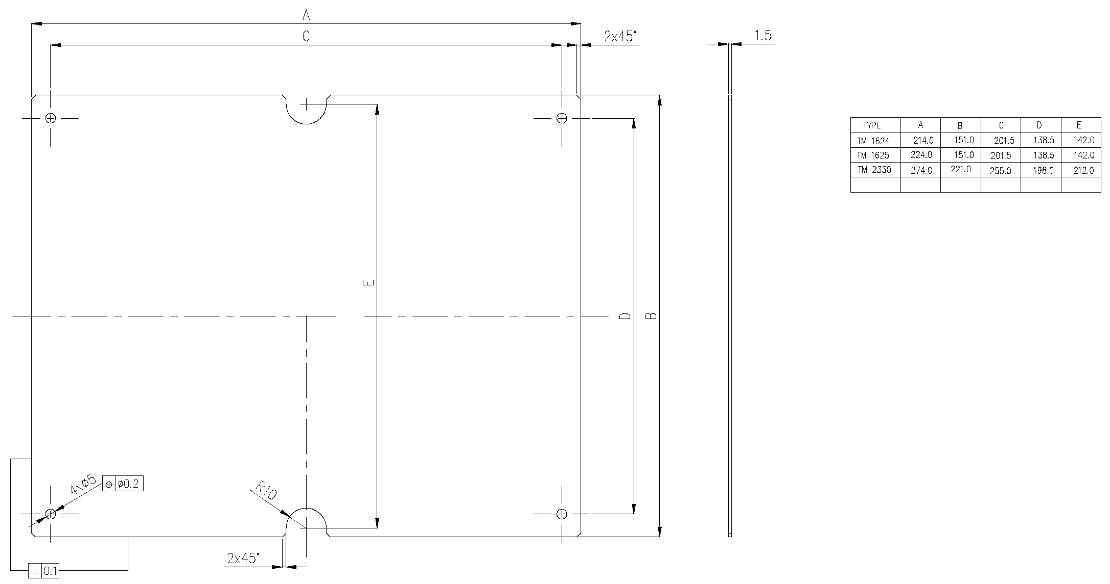

  • Technical Drawings
    TM_1624-2330.pdf Download drawing

CAD Files:

Please log in to your account to view CAD files. Don't have an account? Create a free account

Contact Fibox

View FAQs

Frequently Asked Questions

Get Product Support

Contact Us

Request More Info

Request Information
www.fiboxusa.com(888) 342-6987
TM 1625
TM_1624-2330.pdf
Product #: 9512018
Order Symbol: TM 1625
Description: Mounting plate, for enclosures:
Remarks: 250x160x90-250x160x150
Dimensions Height Width Depth
Inch 5.94 8.43 0.04
mm 151 214 1
Materials
Material: Galvanized Steel
Ratings
Electrical insulation: Not Insulated
Halogen free (DIN/VDE 0472, Part 815): No
