UL PBPC B 85 G 1M

Technical Data

• Product
  Product nr:	8764304
  Description:	4.3 x 3.1 x 3.3 inch polycarbonate pushbutton enclosure with an opaque cover
  Remarks:	1 30.5 mm cut out
  Package:	8
  Unit:	Piece
  EAN:	6418074038838
  Electric No. Denmark:	8212031034
  Electric No. Sweden:	2536804
  ETIM:	EC000261 Enclosure/Switchgear cabinet (empty)

• Dimensions
  Height (inch):	4.3
  Width (inch):	3.1
  Depth (inch):	3.3
  Height (mm):	110
  Width (mm):	80
  Depth (mm):	85

• Materials
  Material:	Polycarbonate
  Base color:	RAL 7035 -light grey
  Cover color:	RAL 7035 -light grey
  Gasket material:	Polyurethane

• Temperatures
  Temperature °F (short term):	-40 … 250
  Temperature °F (continuous):	-40 … 175
  Temperature °C (short term):	-40 … 120
  Temperature °C (continuous):	-40 … 80

• Ratings
  UL/cUL Type:	UL/cUL Type 1, 4, 4X, 6, 12, and 13
  Ingress Protection (EN 60529):	IP66 / IP67
  Impact Resistance (EN 62262):	IK08
  Electrical insulation:	Totally insulated
  Halogen free (DIN/VDE 0472, Part 815):	No
  UV resistance:	UL 508
  Flammability Rating:	UL 746C 5"
  Glow Wire Test (IEC 60695):	960 °C

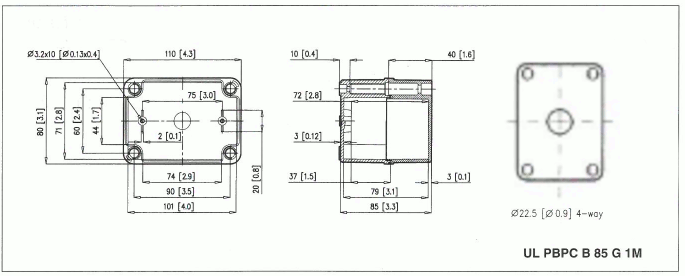

• Technical Drawings
  	Download drawing
