UL PC 125/75 HG
Part #: 6411308
Dimensions: 5.1 x 5.1 x 3
Ratings: UL Type 1, 4, 4x and 6;: IP66; IP67; IK08
Including: Base with PUR gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.
Technical Data
-

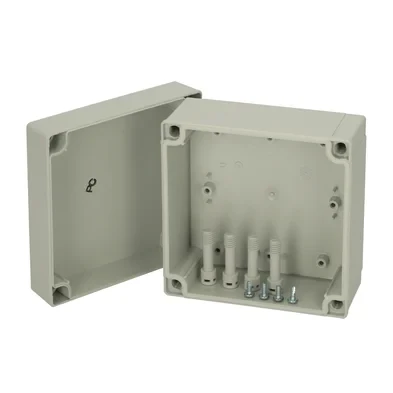

Product Description: Opaque screw cover enclosure -
Dimensions Height (inch): 5.1 Width (inch): 5.1 Depth (inch): 3 Height (mm): 130 Width (mm): 130 Depth (mm): 75 -
Materials Material: Polycarbonate Base color: RAL 7035 -light grey Cover color: RAL 7035 -light grey Gasket material: TPE -
Temperatures Temperature °F (continuous): -40 … 175 Temperature °C (continuous): -40 … 80 -
Ratings UL/cUL Type: 1, 4, 4x and 6; Ingress Protection (EN 60529): IP66; IP67 Impact Resistance (EN 62262): IK08 Electrical insulation: Totally insulated Halogen free (DIN/VDE 0472, Part 815): Yes UV resistance: UL 508 Flammability Rating: UL94-5VA (f1) Glow Wire Test (IEC 60695): 960 °C -
Technical Drawings
Download drawing
Download drawing
CAD Files:
Please log in to your account to view CAD files. Don't have an account? Create a free account
Certificates & Declarations:
www.fiboxusa.com
(888) 342-6987
Product #: 6411308
Order Symbol: UL PC 125/75 HG
Description: Opaque screw cover enclosure
| Dimensions | Height | Width | Depth |
|---|---|---|---|
| Inch | 5.1 | 5.1 | 3 |
| mm | 130 | 130 | 75 |
| Materials | |
|---|---|
| Material: | Polycarbonate |
| Base color: | RAL 7035 -light grey |
| Cover color: | RAL 7035 -light grey |
| Gasket material: | TPE |
| Temperatures | |
|---|---|
| Temperature °F (short term): | -40 … 250 |
| Temperature °F (continuous): | -40 … 175 |
| Temperature °C (short term): | -40 … 140 |
| Temperature °C (continuous): | -40 … 80 |
