UL PC 153410
Part #: 7032700
Dimensions: 13.4 x 5.9 x 4
Ratings: UL Type NEMA Type 1, 4, 4X, 12 and 13:IP66IP67;IK07IK08
Including: Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
Technical Data
-
Product Product nr: 7032700 Description: Opaque screw cover enclosure Remarks: Grey cover Package: 8 Unit: Piece EAN: 6418074058447 SSTL number: 3435368 Electric No. Denmark: 8212004359 Electric No. Sweden: 2536141 ETIM: EC000261 Enclosure/Switchgear cabinet (empty) -
Dimensions Height (inch): 13.4 Width (inch): 5.9 Depth (inch): 4 Height (mm): 340 Width (mm): 150 Depth (mm): 101 -
Materials Material: Polycarbonate Base color: RAL 7035 -light grey Cover color: RAL 7035 -light grey Gasket material: Polyurethane -
Temperatures Temperature °F (continuous): -40 … 175 Temperature °C (continuous): -40 … 80 -
Ratings UL/cUL Type: UL/cUL Type 1, 4, 4X, 12 and 13 Ingress Protection (EN 60529): IP66IP67 Impact Resistance (EN 62262): IK07IK08 Electrical insulation: Totally insulated Halogen free (DIN/VDE 0472, Part 815): Yes UV resistance: UL 508 Flammability Rating: UL 746C 5" Glow Wire Test (IEC 60695): 960 °C -

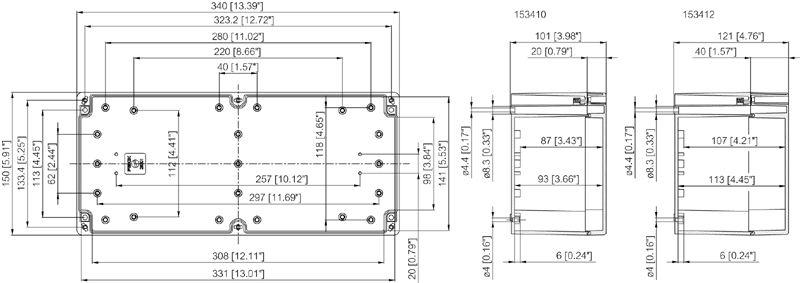

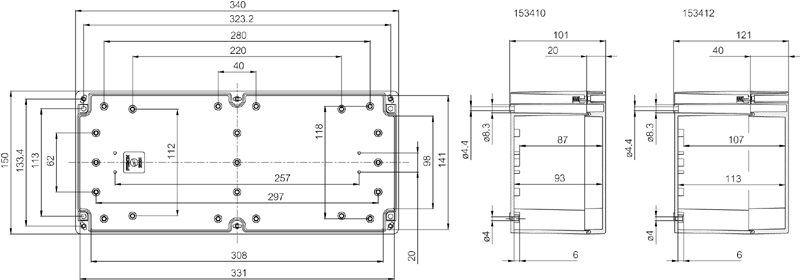

Technical Drawings
Download drawing
Download drawing
CAD Files:
Please log in to your account to view CAD files. Don't have an account? Create a free account
Certificates & Declarations:
Catalogs:
www.fiboxusa.com
(888) 342-6987
Product #: 7032700
Order Symbol: UL PC 153410
Description: Opaque screw cover enclosure
Remarks: Grey cover
| Dimensions | Height | Width | Depth |
|---|---|---|---|
| Inch | 13.4 | 5.9 | 4 |
| mm | 340 | 150 | 101 |
| Materials | |
|---|---|
| Material: | Polycarbonate |
| Base color: | RAL 7035 -light grey |
| Cover color: | RAL 7035 -light grey |
| Gasket material: | Polyurethane |
| Temperatures | |
|---|---|
| Temperature °F (short term): | -40 … 250 |
| Temperature °F (continuous): | -40 … 175 |
| Temperature °C (short term): | -40 … 120 |
| Temperature °C (continuous): | -40 … 80 |
