UL PC 162513

Part #: 7032860

Dimensions: 9.8 x 6.3 x 4.9

PC: UL Type NEMA Type 1, 4, 4X, 12 and 13:IP66IP67;IK07IK08

Including: Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

Request Information
UL PC 162513

Technical Data

  • Product
    Product nr: 7032860
    Description: Enclosure, PC
    Remarks: Grey cover
    Package: 8
    Unit: Piece
    EAN: 6418074003690
    SSTL number: 3423442
    Electric No. Denmark: 8212002966
    Electric No. Sweden: 2536131
    ETIM: EC000261 Enclosure/Switchgear cabinet (empty)
  • Dimensions
    Height (inch): 9.8
    Width (inch): 6.3
    Depth (inch): 4.9
    Height (mm): 250
    Width (mm): 160
    Depth (mm): 125
  • Materials
    Material: Polycarbonate
    Base color: RAL 7035 -light grey
    Cover color: RAL 7035 -light grey
    Gasket material: Polyurethane
  • Temperatures
    Temperature °F (continuous): -40 … 175
    Temperature °C (continuous): -40 … 80
  • Ratings
    UL/cUL Type: UL/cUL Type 1, 4, 4X, 12 and 13
    Ingress Protection (EN 60529): IP66IP67
    Impact Resistance (EN 62262): IK07IK08
    Electrical insulation: Totally insulated
    Halogen free (DIN/VDE 0472, Part 815): No
    UV resistance: UL 508
    Flammability Rating: UL 746C 5"
    Glow Wire Test (IEC 60695): 960 °C
  • Technical Drawings

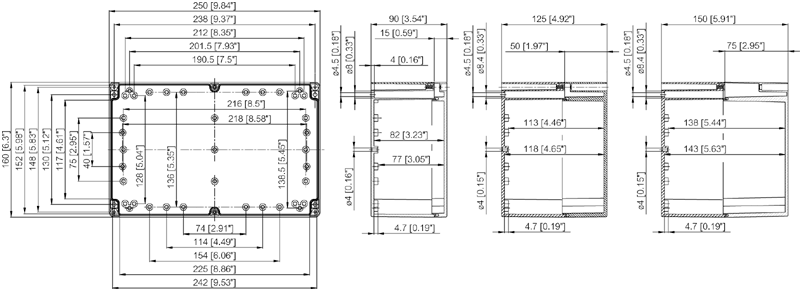

    EURO162509-15i.gif Download drawing

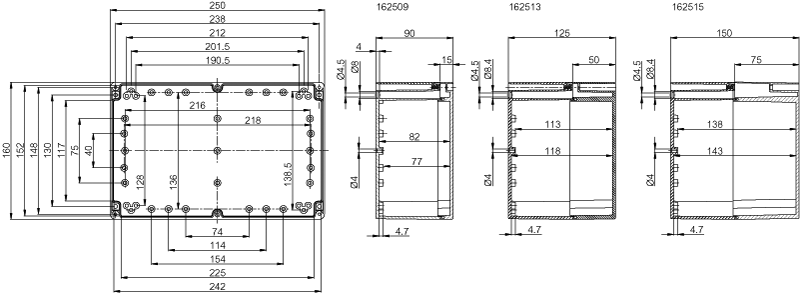

    EURO162509-15.gif Download drawing

CAD Files:

Please log in to your account to view CAD files. Don't have an account? Create a free account

Certificates & Declarations:

View FAQs

Frequently Asked Questions

Get Product Support

Contact Us

Request More Info

Request Information
www.fiboxusa.com(888) 342-6987
UL PC 162513
Product #: 7032860
Order Symbol: UL PC 162513
Description: Enclosure, PC
Remarks: Grey cover
Dimensions Height Width Depth
Inch 9.8 6.3 4.9
mm 250 160 125
Materials
Material: Polycarbonate
Base color: RAL 7035 -light grey
Cover color: RAL 7035 -light grey
Gasket material: Polyurethane
Temperatures
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Temperature °C (short term): -40 … 120
Temperature °C (continuous): -40 … 80
Ratings
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK07IK08
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): No
UV resistance: UL 508
Flammability Rating: UL 746C 5"
Glow Wire Test (IEC 60695): 960 °C
UL/cUL Type: NEMA Type 1, 4, 4X, 12 and 13
