UL PC 200/75 HG

Part #: 6411326

Dimensions: 10 x 7.1 x 3

PC: UL Type 1, 4, 4x and 6;: IP66; IP67; IK08

Including: Base with PUR gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

Request Information
UL PC 200/75 HG

Technical Data

  • Product
    Description: 10 x 7.1 x 3 inch polycarbonate enclosure with grey cover
  • Dimensions
    Height (inch): 10
    Width (inch): 7.1
    Depth (inch): 3
    Height (mm): 255
    Width (mm): 180
    Depth (mm): 75
  • Materials
    Material: Polycarbonate
    Base color: RAL 7035 -light grey
    Cover color: RAL 7035 -light grey
    Gasket material: Polyurethane
  • Temperatures
    Temperature °F (continuous): -40 … 175
    Temperature °C (continuous): -40 … 80
  • Ratings
    UL/cUL Type: 1, 4, 4x and 6;
    Ingress Protection (EN 60529):  IP66; IP67
    Impact Resistance (EN 62262):  IK08
    Electrical insulation: Totally insulated
    Halogen free (DIN/VDE 0472, Part 815): No
    UV resistance:  UL 508
    Flammability Rating: UL94-5VA (f1)
    Glow Wire Test (IEC 60695): 960 °C

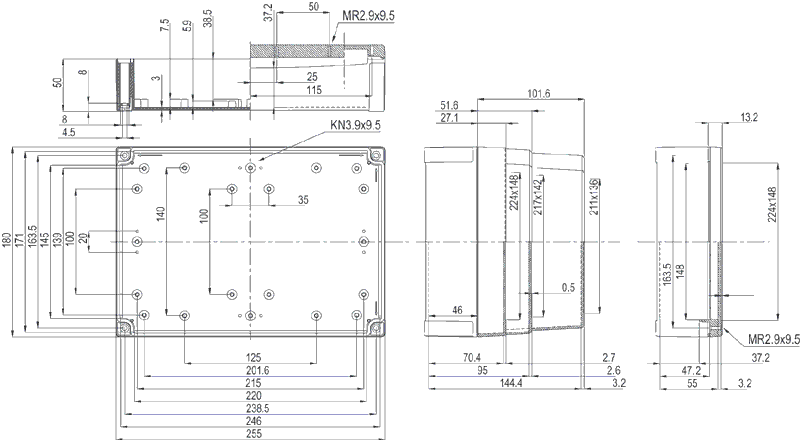

  • Technical Drawings
    MNX200Hi.gif Download drawing

CAD Files:

Please log in to your account to view CAD files. Don't have an account? Create a free account

Certificates & Declarations:

View FAQs

Frequently Asked Questions

Get Product Support

Contact Us

Request More Info

Request Information
www.fiboxusa.com(888) 342-6987
UL PC 200/75 HG
Product #: 6411326
Order Symbol: UL PC 200/75 HG
Description: 10 x 7.1 x 3 inch polycarbonate enclosure with grey cover
Dimensions Height Width Depth
Inch 10 7.1 3
mm 255 180 75
Materials
Material: Polycarbonate
Base color: RAL 7035 -light grey
Cover color: RAL 7035 -light grey
Gasket material: Polyurethane
Temperatures
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Temperature °C (short term): -40 … 140
Temperature °C (continuous): -40 … 80
Ratings
Ingress Protection (EN 60529):  IP66; IP67
Impact Resistance (EN 62262):  IK08
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): No
UV resistance:  UL 508
Flammability Rating: UL94-5VA (f1)
Glow Wire Test (IEC 60695): 960 °C
UL/cUL Type: 1, 4, 4x and 6;
