UL PC 2828 13 G-2FSH

Part #: 9880317

Dimensions: 10.9 x 10.9 x 5.1 Inches

PC: UL Type Type 1, 3, 3S, 4, 4X, 6, 6P and 12: IP66; IP67; IK08

Including:

Request Information
UL PC 2828 13 G-2FSH

Technical Data

  • Product
    Description: Enclosure, PC, IP 65, Opaque Hinged Cover
  • Dimensions
    Height (inch): 10.9
    Width (inch): 10.9
    Depth (inch): 5.1
    Height (mm): 278
    Width (mm): 278
    Depth (mm): 130
  • Materials
    Material: Polycarbonate
    Base color: RAL 7035 -light grey
    Cover color: RAL 7035 -light grey
    Gasket material: Polyurethane
  • Temperatures
    Temperature °F (continuous): -40 … 175
    Temperature °C (continuous): -40 … 80
  • Ratings
    UL/cUL Type: Type 1, 3, 3S, 4, 4X, 6, 6P and 12
    Ingress Protection (EN 60529):  IP66; IP67
    Impact Resistance (EN 62262):  IK08
    Electrical insulation: Totally insulated
    Halogen free (DIN/VDE 0472, Part 815): No
    UV resistance:  UL 508
    Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1)
    Glow Wire Test (IEC 60695): 960 °C
  • Technical Drawings

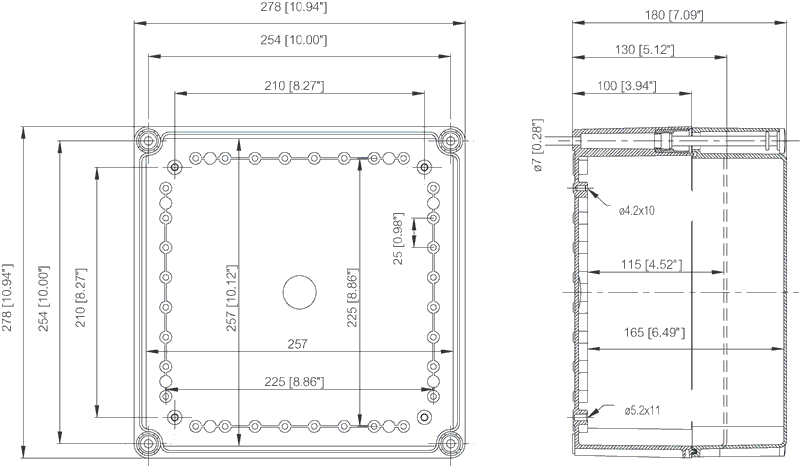

    PC_ABS2828i.gif Download drawing

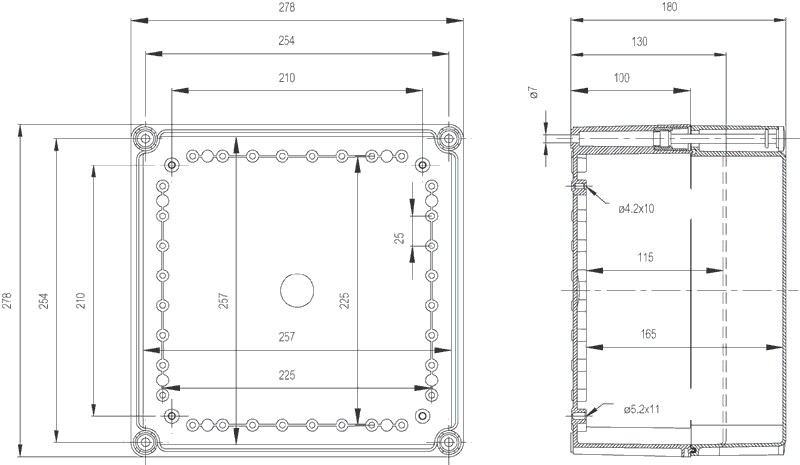

    PC_ABS2828.gif Download drawing

CAD Files:

Please log in to your account to view CAD files. Don't have an account? Create a free account

Certificates & Declarations:

View FAQs

Frequently Asked Questions

Get Product Support

Contact Us

Request More Info

Request Information
www.fiboxusa.com(888) 342-6987
UL PC 2828 13 G-2FSH
Product #: 9880317
Order Symbol: UL PC 2828 13 G-2FSH
Description: Enclosure, PC, IP 65, Opaque Hinged Cover
Dimensions Height Width Depth
Inch 10.9 10.9 5.1
mm 278 278 130
Materials
Material: Polycarbonate
Base color: RAL 7035 -light grey
Cover color: RAL 7035 -light grey
Gasket material: Polyurethane
Temperatures
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Temperature °C (short term): -40 … 140
Temperature °C (continuous): -40 … 80
Ratings
Ingress Protection (EN 60529):  IP66; IP67
Impact Resistance (EN 62262):  IK08
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): No
UV resistance:  UL 508
Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1)
Glow Wire Test (IEC 60695): 960 °C
UL/cUL Type: Type 1, 3, 3S, 4, 4X, 6, 6P and 12
