UL PCT 081607
Part #: 7022621
Dimensions: 6.3 x 3.1 x 2.6
PC: UL Type NEMA Type 1, 4, 4X, 12 and 13:IP66IP67;IK07IK08
Including: Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
Technical Data
-
Product Product nr: 7022621 Description: Enclosure, PC Remarks: Clear Cover Package: 8 Unit: Piece ETIM: EC000261 Enclosure/Switchgear cabinet (empty) -
Dimensions Height (inch): 6.3 Width (inch): 3.1 Depth (inch): 2.6 Height (mm): 160 Width (mm): 80 Depth (mm): 65 -
Materials Material: Polycarbonate Base color: RAL 7035 -light grey Cover color: Clear Gasket material: Polyurethane -
Temperatures Temperature °F (continuous): -40 … 175 Temperature °C (continuous): -40 … 80 -
Ratings UL/cUL Type: UL/cUL Type 1, 4, 4X, 12 and 13 Ingress Protection (EN 60529): IP66IP67 Impact Resistance (EN 62262): IK07IK08 Electrical insulation: Totally insulated Halogen free (DIN/VDE 0472, Part 815): No UV resistance: UL 508 Flammability Rating: UL 746C 5" Glow Wire Test (IEC 60695): 960 °C -

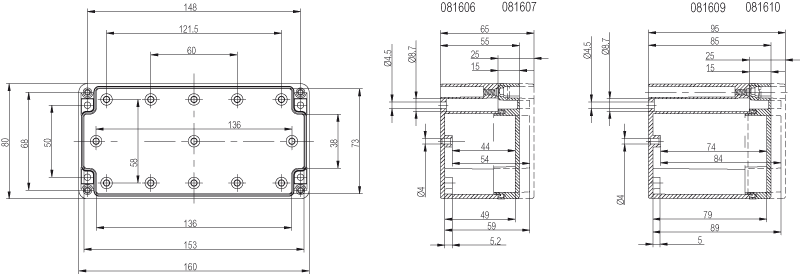

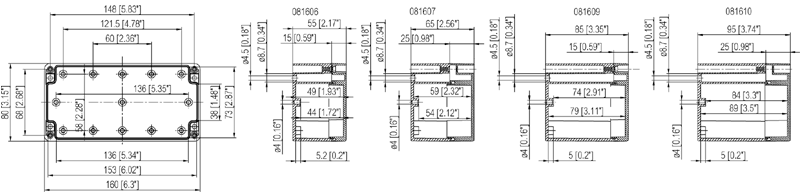

Technical Drawings Download drawing Download drawing
CAD Files:
Please log in to your account to view CAD files. Don't have an account? Create a free account
Certificates & Declarations:
Catalogs:
www.fiboxusa.com(888) 342-6987
Product #: 7022621
Order Symbol: UL PCT 081607
Description: Enclosure, PC
Remarks: Clear Cover
Dimensions | Height | Width | Depth |
---|---|---|---|
Inch | 6.3 | 3.1 | 2.6 |
mm | 160 | 80 | 65 |
Materials | |
---|---|
Material: | Polycarbonate |
Base color: | RAL 7035 -light grey |
Cover color: | Clear |
Gasket material: | Polyurethane |
Temperatures | |
---|---|
Temperature °F (short term): | -40 … 250 |
Temperature °F (continuous): | -40 … 175 |
Temperature °C (short term): | -40 … 120 |
Temperature °C (continuous): | -40 … 80 |
