UL PCT 233011
Part #: 7022891
Dimensions: 11.8 x 9.1 x 4.3
Ratings: UL Type UL 508:IK07IK08;Totally insulated
Including: Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.
Technical Data
-
Product Product nr: 7022891 Description: Transparent screw cover enclosure Remarks: Clear Cover Package: 8 Unit: Piece EAN: 6418074003836 SSTL number: 3423546 Electric No. Denmark: 8212003059 ETIM: EC000261 Enclosure/Switchgear cabinet (empty) -
Dimensions Height (inch): 11.8 Width (inch): 9.1 Depth (inch): 4.3 Height (mm): 300 Width (mm): 120 Depth (mm): 110 -
Materials Material: Polycarbonate Base color: RAL 7035 -light grey Cover color: Clear Gasket material: Polyurethane -
Temperatures Temperature °F (continuous): -40 … 175 Temperature °C (continuous): -40 … 80 -
Ratings UL/cUL Type: UL 508 Ingress Protection (EN 60529): IK07IK08 Impact Resistance (EN 62262): Totally insulated Electrical insulation: Yes Halogen free (DIN/VDE 0472, Part 815): Yes UV resistance: UL 746C 5" Flammability Rating: IP66IP67 -

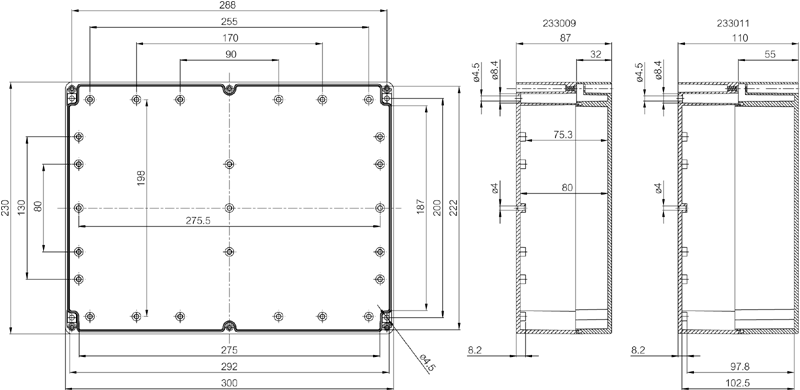

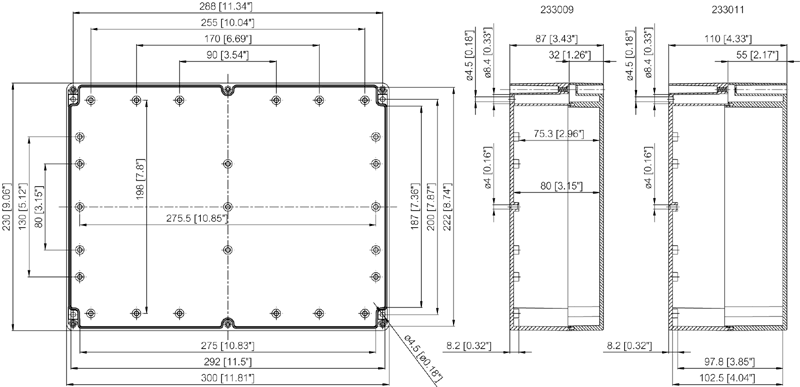

Technical Drawings
Download drawing
Download drawing
CAD Files:
Please log in to your account to view CAD files. Don't have an account? Create a free account
Certificates & Declarations:
Catalogs:
www.fiboxusa.com
(888) 342-6987
Product #: 7022891
Order Symbol: UL PCT 233011
Description: Transparent screw cover enclosure
Remarks: Clear Cover
| Dimensions | Height | Width | Depth |
|---|---|---|---|
| Inch | 11.8 | 9.1 | 4.3 |
| mm | 300 | 120 | 110 |
| Materials | |
|---|---|
| Material: | Polycarbonate |
| Base color: | RAL 7035 -light grey |
| Cover color: | Clear |
| Gasket material: | Polyurethane |
| Temperatures | |
|---|---|
| Temperature °F (short term): | -40 … 250 |
| Temperature °F (continuous): | -40 … 175 |
| Temperature °C (short term): | -40 … 120 |
| Temperature °C (continuous): | -40 … 80 |
