UL TPCM 191209T

Part #: 5824029

Dimensions: 7.4 x 4.8 x 3.5

PC: UL Type 1, 4, & 4X:; IK07/IK08

Including:

Request Information
UL TPCM 191209T

Technical Data

  • Product
    Product nr: 191209

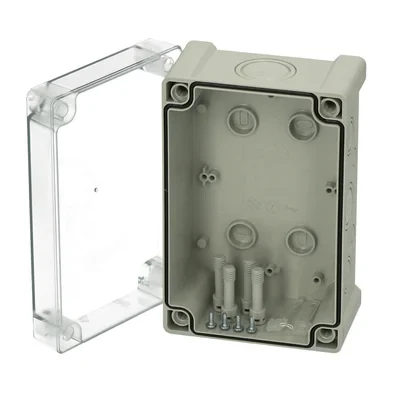

    Description: Enclosure, PC
    Remarks: Clear Cover with Metric Knock-Out Base
    EAN: 6418074087133
    Electric No. Denmark: 8212052220
    ETIM: EC000261 Enclosure/Switchgear cabinet (empty)
  • Dimensions
    Height (inch): 7.4
    Width (inch): 4.8
    Depth (inch): 3.5
    Height (mm): 187
    Width (mm): 122
    Depth (mm): 3.5
  • Materials
    Material: Polycarbonate
    Base color: RAL 7035 -light grey
    Cover color: Transparent Grey
    Gasket material: Polyurethane
  • Temperatures
    Temperature °F (continuous): -40 … 175
    Temperature °C (continuous): -40 … 80
  • Ratings
    UL/cUL Type: 1, 4, & 4X
    Impact Resistance (EN 62262):  IK07/IK08
    Electrical insulation: Totally insulated
    Halogen free (DIN/VDE 0472, Part 815): No
    UV resistance:  UL 508
    Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1)
    Glow Wire Test (IEC 60695): 960 °C
  • Technical Drawings
    Tempo-1912_Combi.gif Download drawing

CAD Files:

Please log in to your account to view CAD files. Don't have an account? Create a free account

Certificates & Declarations:

View FAQs

Frequently Asked Questions

Get Product Support

Contact Us

Request More Info

Request Information
www.fiboxusa.com(888) 342-6987
UL TPCM 191209T
Product #: 5824029
Order Symbol: UL TPCM 191209T
Description: Enclosure, PC
Remarks: Clear Cover with Metric Knock-Out Base
Dimensions Height Width Depth
Inch 7.4 4.8 3.5
mm 187 122 3.5
Materials
Material: Polycarbonate
Base color: RAL 7035 -light grey
Cover color: Transparent Grey
Gasket material: Polyurethane
Temperatures
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Temperature °C (short term): -40 … 140
Temperature °C (continuous): -40 … 80
Ratings
Impact Resistance (EN 62262):  IK07/IK08
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): No
UV resistance:  UL 508
Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1)
Glow Wire Test (IEC 60695): 960 °C
UL/cUL Type: 1, 4, & 4X
