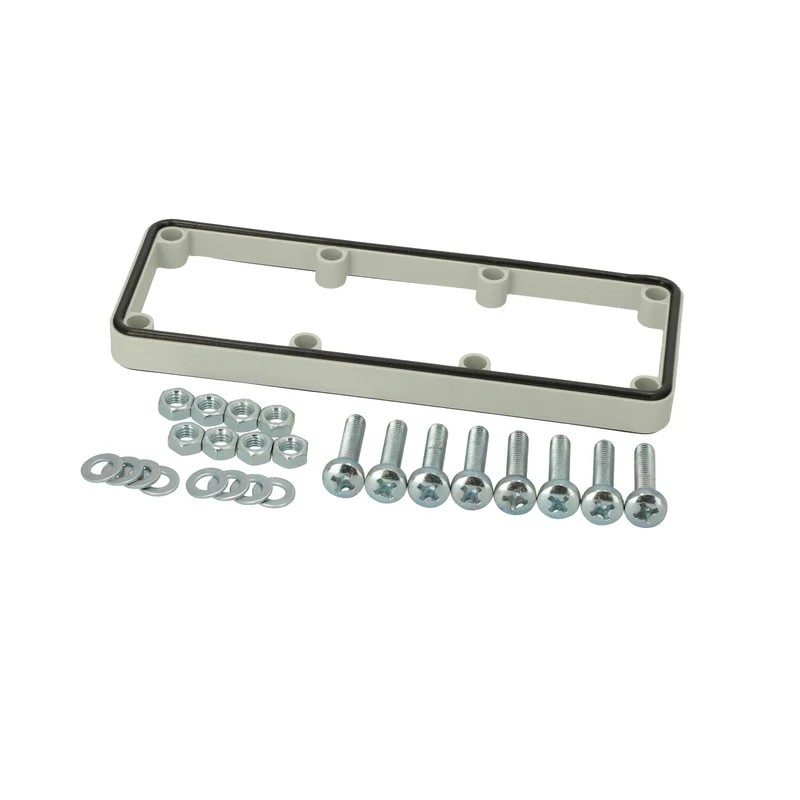

CFS ARCA
Part #: 8120820
Dimensions: 3.23 x 8.5 x 0.47
Ratings:
Including: Mounting Hardware
Technical Data
-
Product Product nr: 8120820 Description: Coupling Flange IP 65 Remarks: Coupling Flange IP 65 Package: 1 Unit: Piece EAN: 6418074083173 ETIM: -
Dimensions Height (inch): 3.23 Width (inch): 8.5 Depth (inch): 0.47 Weight (lbs): 0.25 Height (mm): 82 Width (mm): 216 Depth (mm): 12 Weight (g): 113.3981 -
Materials Base color: RAL 7035 -light grey Gasket material: Polyurethane (PUR) -
Temperatures Temperature °F (continuous): -40 … 175 Temperature °C (continuous): -40 … 80 -
Ratings Halogen free (DIN/VDE 0472, Part 815): No
CAD Files:
Please log in to your account to view CAD files. Don't have an account? Create a free account
Catalogs:
www.fiboxusa.com
(888) 342-6987
Product #: 8120820
Order Symbol: CFS ARCA
Description: Coupling Flange IP 65
Remarks: Coupling Flange IP 65
| Dimensions | Height | Width | Depth | Weight |
|---|---|---|---|---|
| Inch | 3.23 | 8.5 | 0.47 | 0.25 lbs |
| mm | 82 | 216 | 12 | 113.3981 g |
| Materials | |
|---|---|
| Base color: | RAL 7035 -light grey |
| Gasket material: | Polyurethane (PUR) |
| Temperatures | |
|---|---|
| Temperature °F (short term): | -40 … 250 |
| Temperature °F (continuous): | -40 … 175 |
| Temperature °C (short term): | -40 … 140 |
| Temperature °C (continuous): | -40 … 80 |
