Logo for: Fibox

UL PC C 65 T

Part #: 8714005

Dimensions: 5.5 x 3.1 x 2.6

PC: UL Type NEMA Type 1, 4, 4X, 6, 12, and 13:IP66 / IP67;IK08

Including: Enclosure PC, Transparent cover

Request Information
UL PC C 65 T

Technical Data

  • Product
    Description: 5.5 x 3.1 x 2.6 inch polycarbonate enclosure with an transparent cover
    Package: 8
    Unit: Piece
    EAN: 6418074038845
    Electric No. Denmark: 8212031063
  • Dimensions
    Height (inch): 5.5
    Width (inch): 3.1
    Depth (inch): 2.6
    Height (mm): 140
    Width (mm): 80
    Depth (mm): 65
  • Materials
    Material: Polycarbonate
    Base color: RAL 7035 -light grey
    Cover color: Transparent
    Gasket material: Polyurethane
  • Temperatures
    Temperature °F (continuous): -40 … 175
    Temperature °C (continuous): -40 … 80
  • Ratings
    UL/cUL Type: UL/cUL Type 1, 4, 4X, 6, 12, and 13
    Ingress Protection (EN 60529): IP66 / IP67
    Impact Resistance (EN 62262): IK08
    Electrical insulation: Totally insulated
    Halogen free (DIN/VDE 0472, Part 815): No
    UV resistance: UL 508
    Flammability Rating: UL 746C 5"
    Glow Wire Test (IEC 60695): 960 °C

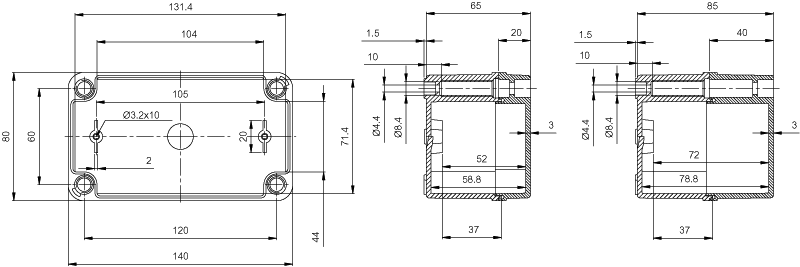

  • Technical Drawings
    PICCDIM.gif Download drawing

CAD Files:

Please log in to your account to view CAD files. Don't have an account? Create a free account

Certificates & Declarations:

View FAQs

Frequently Asked Questions

Get Product Support

Contact Us

Request More Info

Request Information
www.fiboxusa.com(888) 342-6987
UL PC C 65 T
Product #: 8714005
Order Symbol: UL PC C 65 T
Description: 5.5 x 3.1 x 2.6 inch polycarbonate enclosure with an transparent cover
Dimensions Height Width Depth
Inch 5.5 3.1 2.6
mm 140 80 65
Materials
Material: Polycarbonate
Base color: RAL 7035 -light grey
Cover color: Transparent
Gasket material: Polyurethane
Temperatures
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Temperature °C (short term): -40 … 120
Temperature °C (continuous): -40 … 80
Ratings
Ingress Protection (EN 60529): IP66 / IP67
Impact Resistance (EN 62262): IK08
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): No
UV resistance: UL 508
Flammability Rating: UL 746C 5"
Glow Wire Test (IEC 60695): 960 °C
UL/cUL Type: NEMA Type 1, 4, 4X, 6, 12, and 13
